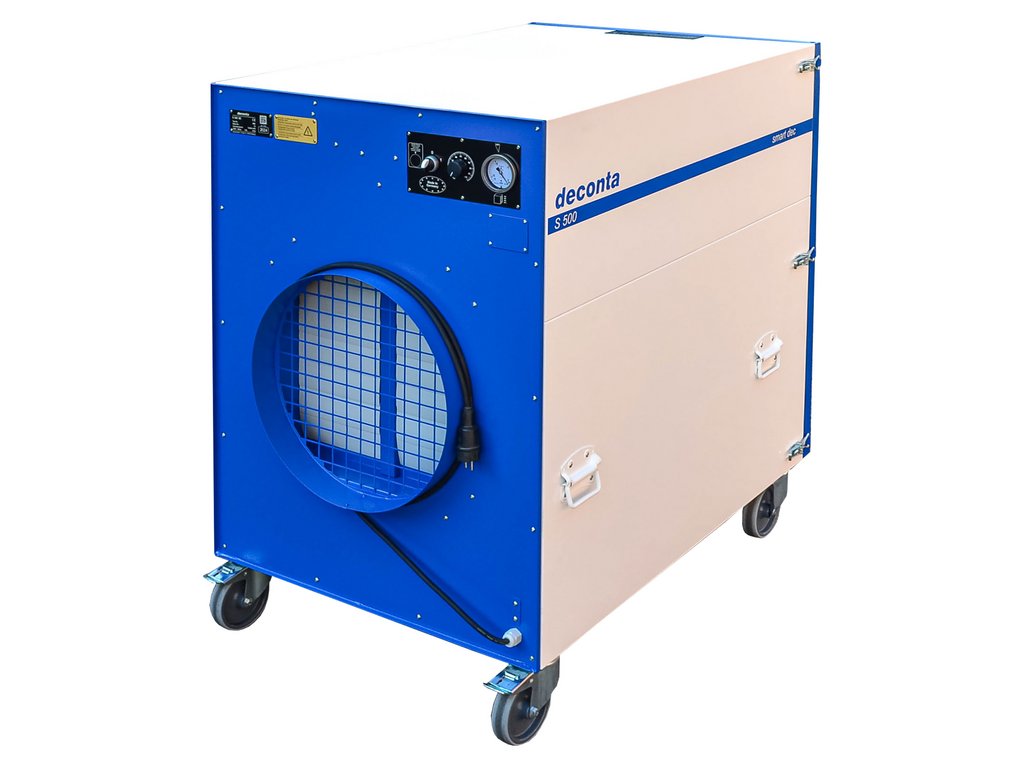

Smart Dec S 500 SE | Negative Pressure Unit

Smart Dec S 500 SE | Negative Pressure Unit

$12,230.42 AUD
$0.00 AUD $12,230.42 AUD
Sale Sold out
Download PDF

Negative pressure unit for filtering asbestos contaminated room air via a 2-stage filter unit.

air capacity with filter max. 10300 m³/h

  • energy-efficient and performance-optimized fan with high capacity
  • smooth and easy-to-decontaminate housing
  • light and sturdy housing
  • threefold sealed HEPA filter
  • easy, very low-emission filter change
  • stainless and powder-coated housing
  • automatic soft start, even after power failure
  • automatic closing exhaust flap


View full details

2 control options

Control SE

For power regulation, the NPU is supplied with manual stepless speed control.
A necessary filter change is indicated by a manometer.

Control SE+

The NPU is supplied with a manual / automated stepless control for power regulation.
A necessary filter change is indicated by a manometer.

Technical data

All data on air performance and volume flows are taking into account a measuring tolerance of ± 15% based on the measuring range end value, determined in a multi-point measuring method with a calibrated vane anemometer.

  • Dimensions in mm (LxWxH): 1080 x 750 x 1145
  • Weight incl. filter: ca. 130 kg
  • Voltage: 230 V
  • Power consumption: 13 A
  • Motopower: 2x 1,3 kW
  • Volume flow without filter: 13300m³/h
  • Volumen flow with filter: 10300 m³/h
  • Filter stages: 2
  • HEPA filter dimensions in mm: 610 x 910 x 400
  • Hose connection suction: NW 450
  • Hose connection exhaust: NW 450
  • Chassis with wheels: integrated

ATTENTION! Only original deconta HEPA filters ensure machine safety!
