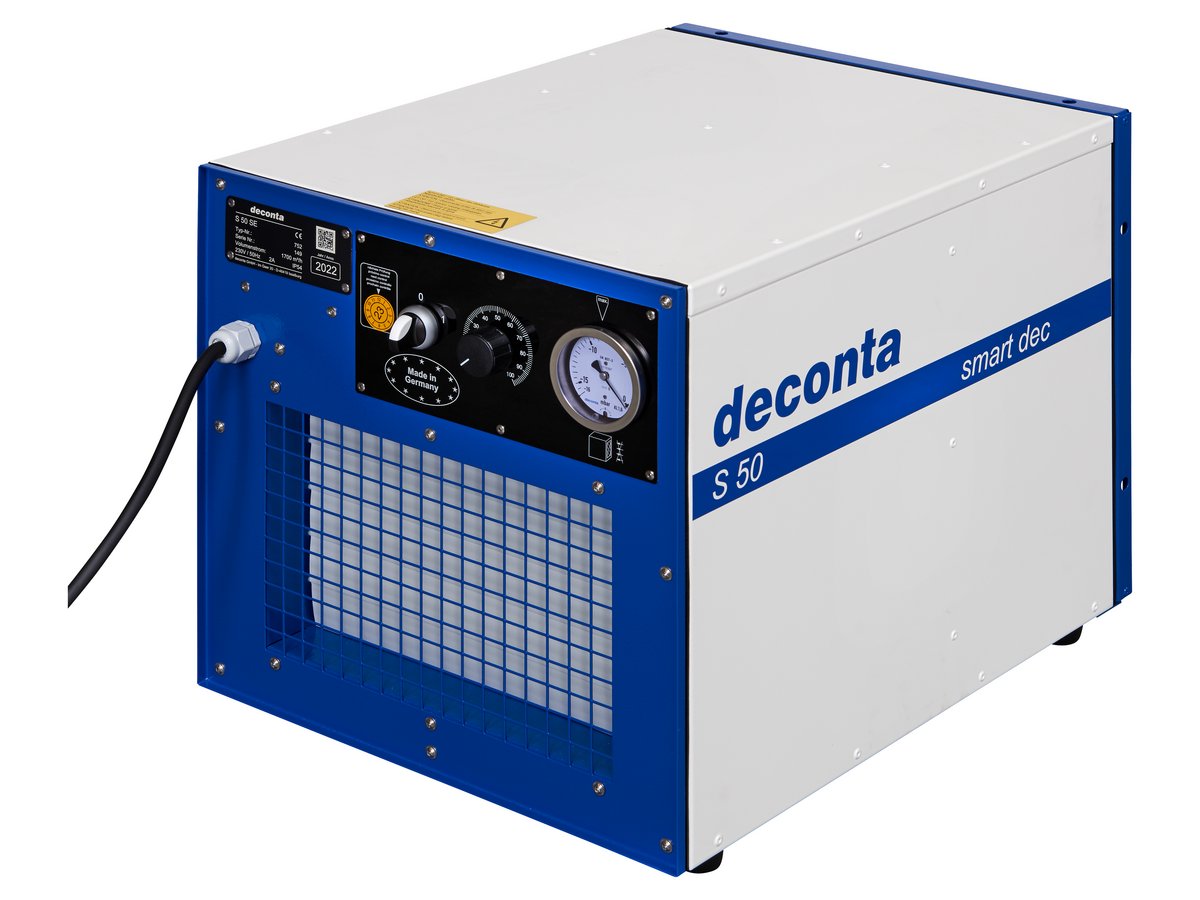

Negative Pressure Unit | Smart Dec S55 SE (Sale & Hire)

2 control options

Control SE

For power regulation, the NPU is supplied with manual stepless speed control.
A necessary filter change is indicated by a manometer.

Control SE+

The NPU is supplied with a manual / automated stepless control for power regulation.
A necessary filter change is indicated by a manometer.

Technical data

All data on air performance and volume flows are taking into account a measuring tolerance of ± 15% based on the measuring range end value, determined in a multi-point measuring method with a calibrated vane anemometer.

• Dimensions (LxWxH): 530 x 386 x 397 mm
• Weight incl. filter: 21,5 kg
• Voltage: 110 V / 230 V
• Power consumption: 2,4 A (110 V) / 1,2 A (230 V)
• Motor power: 0,17 kW (110 V) / 0,21 kW (230 V)
• Volume flow without filter:1500 m³/h (110 V) / 1700 m³/h (230 V)
• Volume flow with filter: 700 m³/h (110 V) /   900 m³/h (230 V)
• Filter stages: 2
• Suction flange: ND 150
• HEPA filter: acc. to EN 1822 class H13 or H14

ATTENTION ! Only original deconta HEPA filters ensure machine safety!
