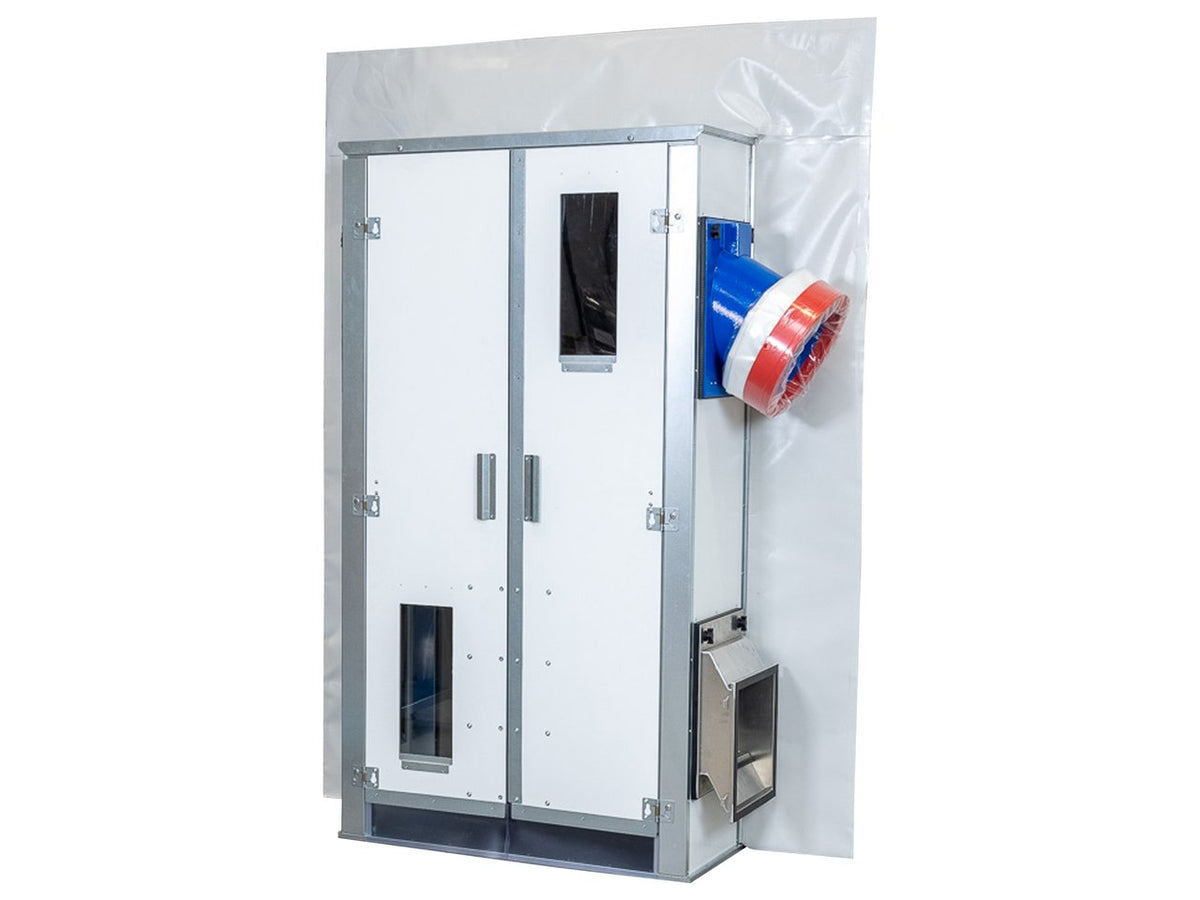

The SMART-DOOR+ is designed for contractors who need more than a simple dust barrier.

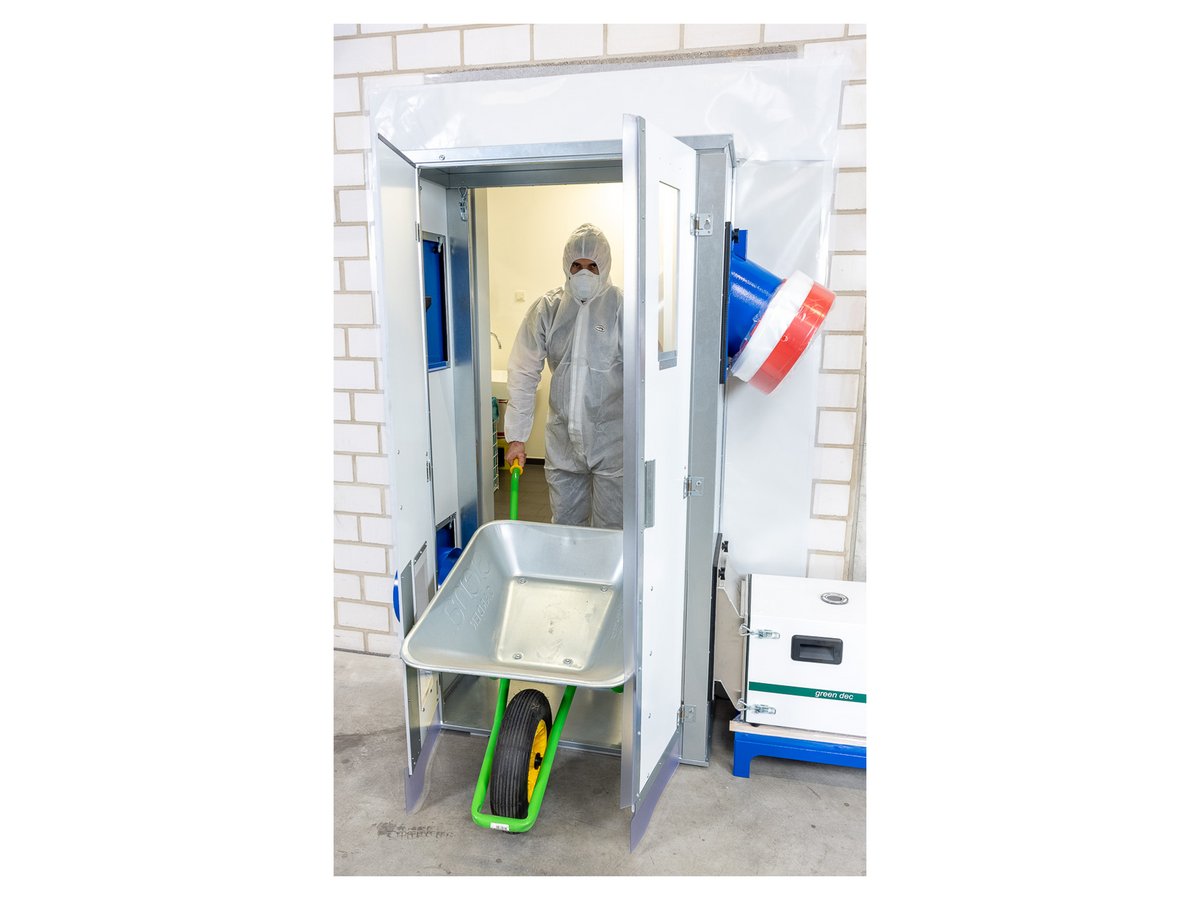

Its double-leaf, sill-free opening allows personnel, wheelbarrows and equipment to move through the containment entrance without having to negotiate a raised threshold. The doors automatically close after passage, helping maintain separation between the controlled work area and the surrounding environment. deconta specifically identifies the opening as wheelbarrow-compatible.
Configure the Door Around the Project
The side connection system accepts interchangeable SMART-DOOR+ attachments, allowing the doorway to be configured for different containment applications.
Available connections include:

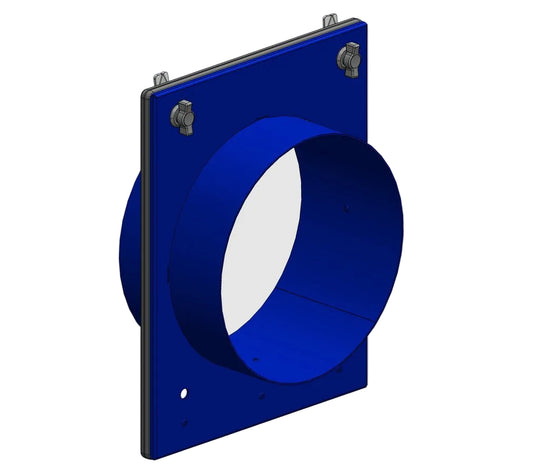

- 300 mm duct hose connection
- 2 × 150 mm duct hose connection
- Air filter intake / filter holder

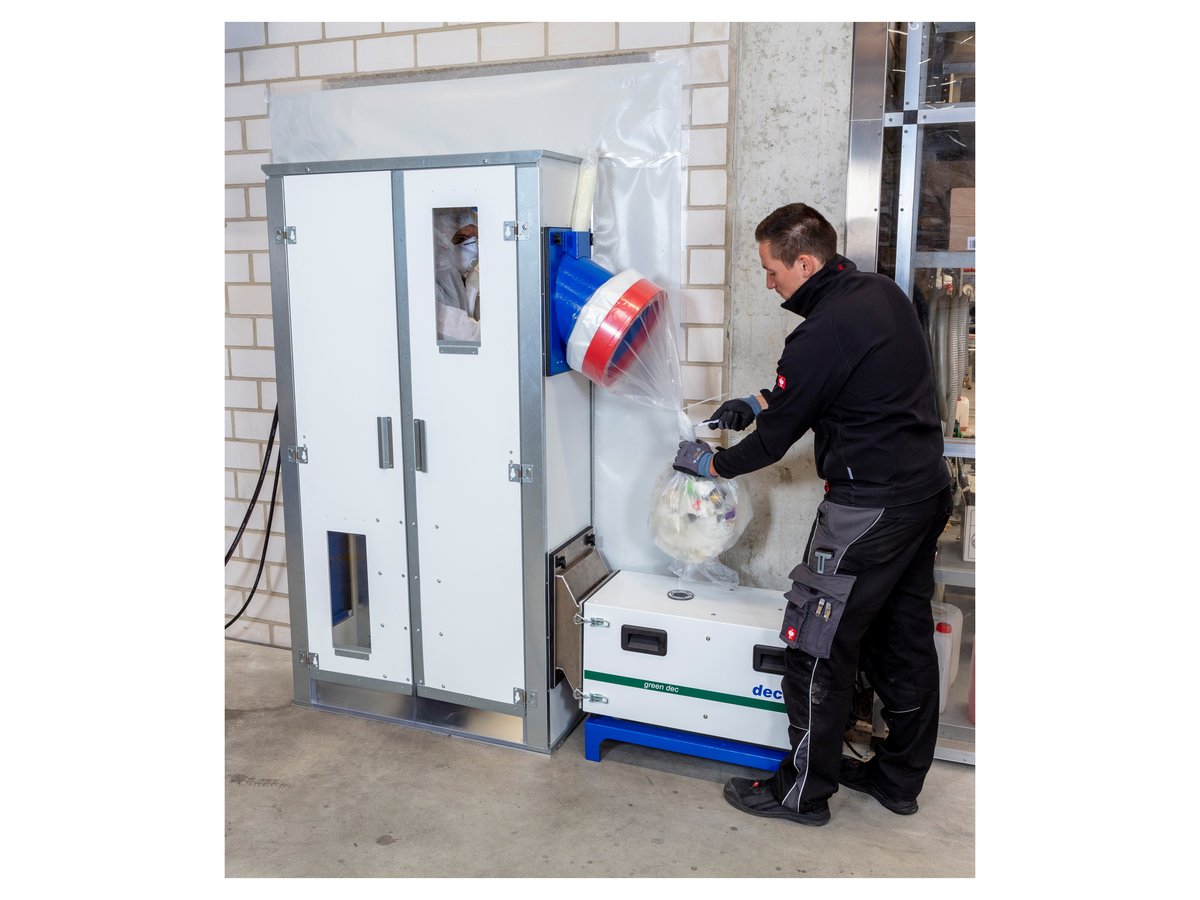

- smartBAG continuous waste connection
- Closing cover / blank panel

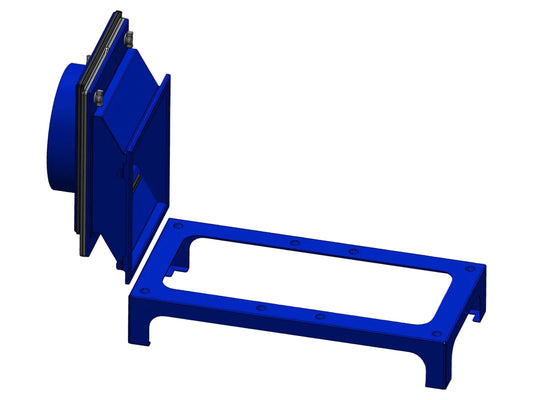

- G50 / G55 / G100 negative pressure unit connection
- Supply connection
- Direct docking frame for the deconta Smart Dec S200 NPU
These connection options are listed by deconta for the SMART-DOOR+ system.
This means you can change the doorway configuration as the project changes rather than permanently modifying the containment structure.
Built for Negative-Pressure Containment
The SMART-DOOR+ incorporates self-closing air-supply flaps and can be connected to compatible negative pressure equipment. Pressure transmission is also possible for use with compatible automatic NPU control systems.
Expand into a Complete Decontamination System
The SMART-DOOR+ is compatible with deconta SMART-LINE, SMART+ and ECO-Line lock/decontamination systems, allowing the entrance to become part of a larger personnel decontamination arrangement when required.
Key Benefits
- Approx. 5-minute tool-free installation
- Reusable across multiple projects
- Double-leaf self-closing doors
- No floor sill / threshold
- Wheelbarrow and equipment-friendly access
- Interchangeable connection attachments
- NPU and extraction duct connection options
- Controlled air-supply capability
- Compatible with several deconta personnel-lock systems
- Easy to clean and dismantle
- Professional alternative to repeatedly fabricating temporary containment entrances
Technical Specifications
SpecificationSMART-DOOR+SystemPlug-in modular systemDoorDouble-leaf, self-closingFloor sillNoneDimensions1000 × 430 × 1910 mmWeightApprox. 40 kgMaximum standard opening coverage1620 × 2216 mmDoor / side panelsPlasticBase / roofGalvanised sheet metalInstallationApprox. 5 minutes, tool-free
deconta's technical documentation confirms the plug-in construction, double-leaf sill-free doorway, dimensions and approximately 40 kg system weight. Datenblatt-staubschutztuer-smar…
Important: The base SMART-DOOR+ is supplied without connection attachments unless otherwise specified. Connection panels and associated equipment are selected separately to suit the required configuration. Datenblatt-staubschutztuer-smar…
